Leadleds Led Video Processor Live Play Free Switching Free Cropping Multiple Singnal Inputs

The Led screen processor delivers reliable performance and offers a wide range of features to help you bring your vision to life. This powerful processor enables live play, synchronous display, and live broadcast, along with free switching, free cropping, and multiple signal inputs. With its advanced features and durable design, you can be sure of reliable and intuitive performance.

Overview

LLD-X2s is a professional LED display controller. It possesses powerful video signal receiving and processing capacities and supports HD digital signals, in which the maximum input resolution is 1920X1200 pixels. It supports HD digital ports including HDMI and DVI, and seamless switching between signals. It supports arbitrary scaling and cropping of video sources.

LLD-X2s adopts 2-gigabit ethernet outputs, and it supports LED displays of 4096 pixels in maximum width or 2560 pixels in maximum height. Meanwhile, LLD-X2s is equipped with a series of versatile functions which can provide flexible screen control and high-quality image displays. It can be perfectly applied to your LED displays.

Features:
Supports HDMI and DVI signal inputs

Loading capacity: 1.31 million pixels
maximum width: 4096 pixels
maximum height: 2560 pixels

Supports input resolutions up to 1920X1200@60Hz

Supports arbitrary switching and scaling of the video source

Separate audio input

Supports HDCP

Supports brightness and color temperature adjustment

Supports improved grayscale at low brightness.

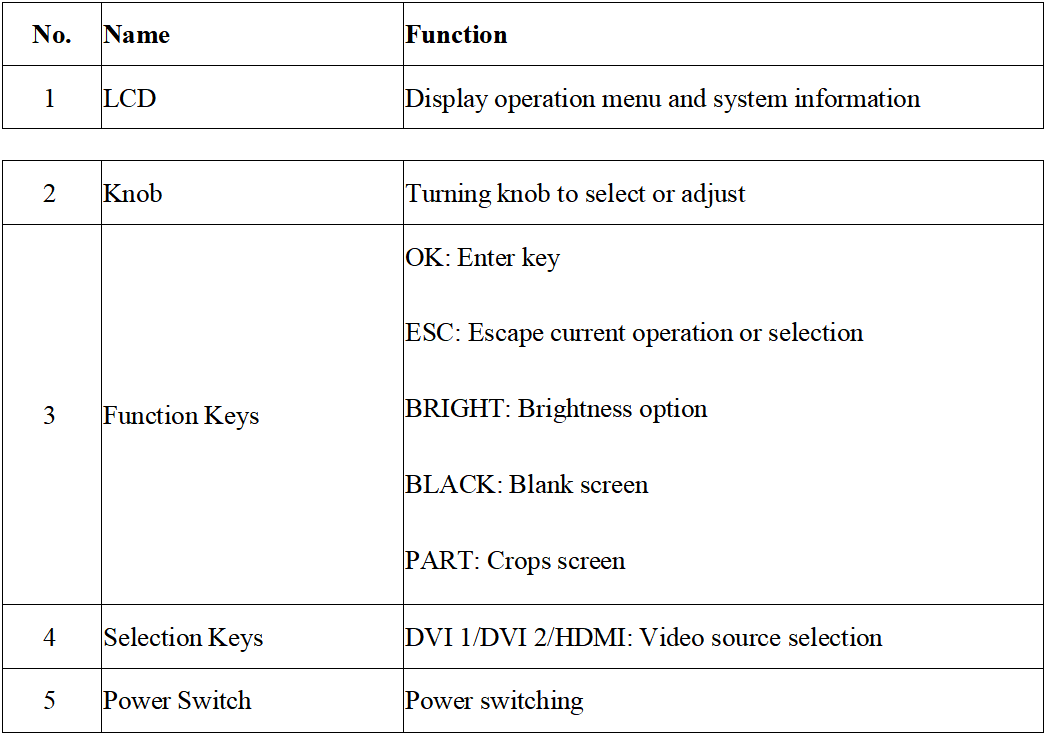

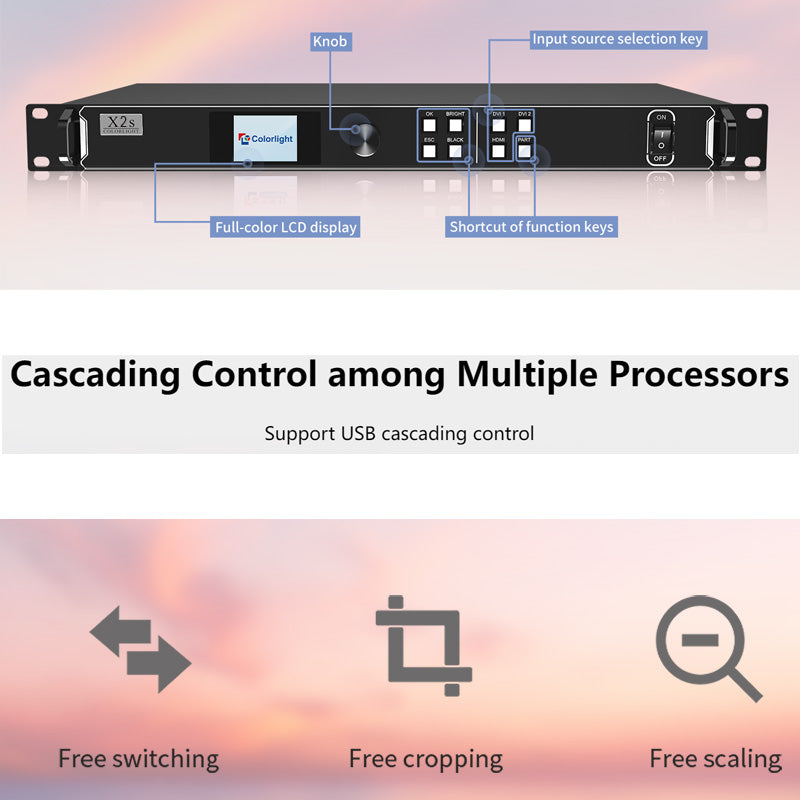

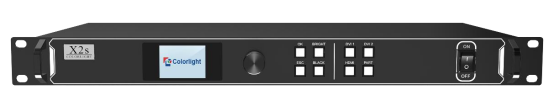

The Front Panel:

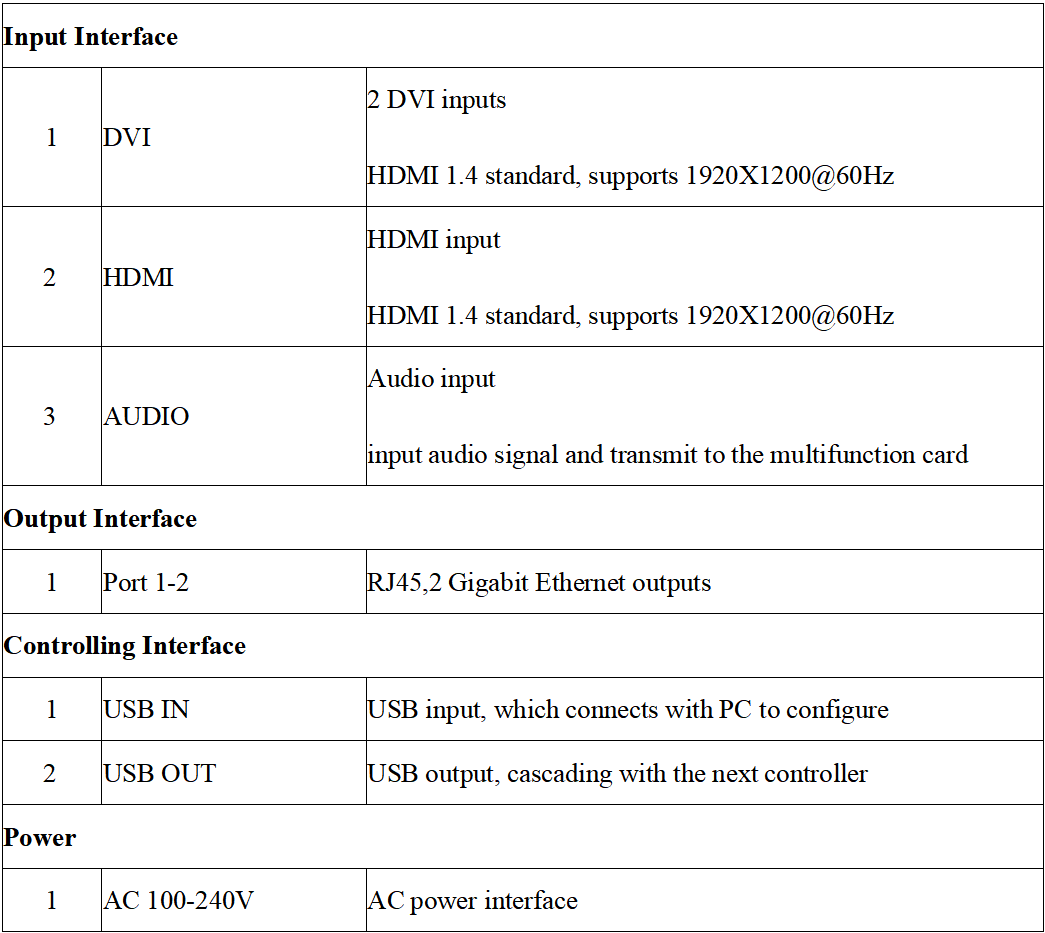

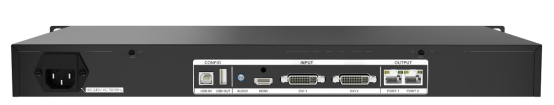

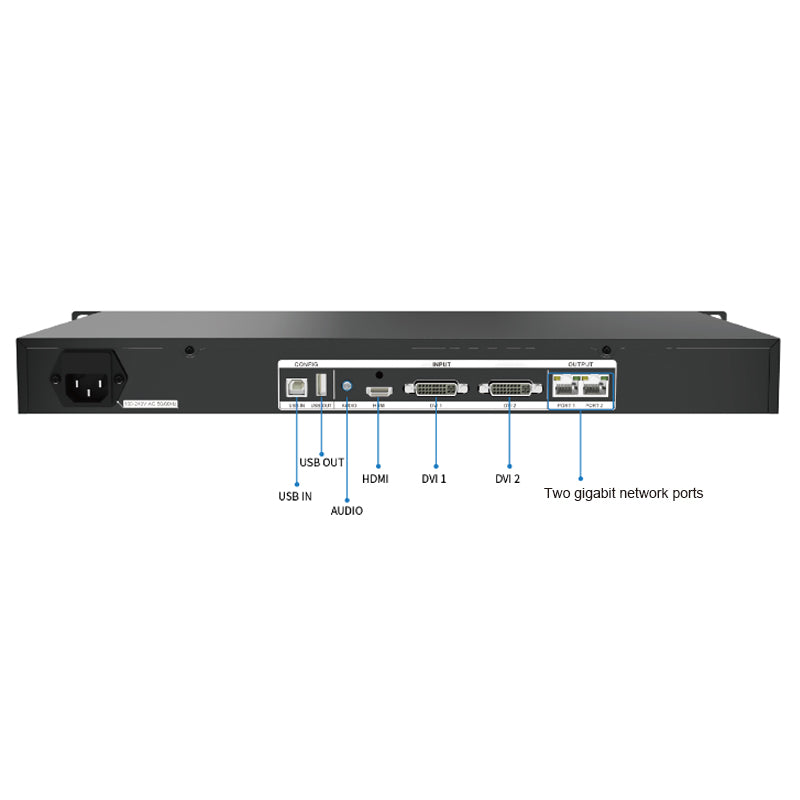

The Back Panel:

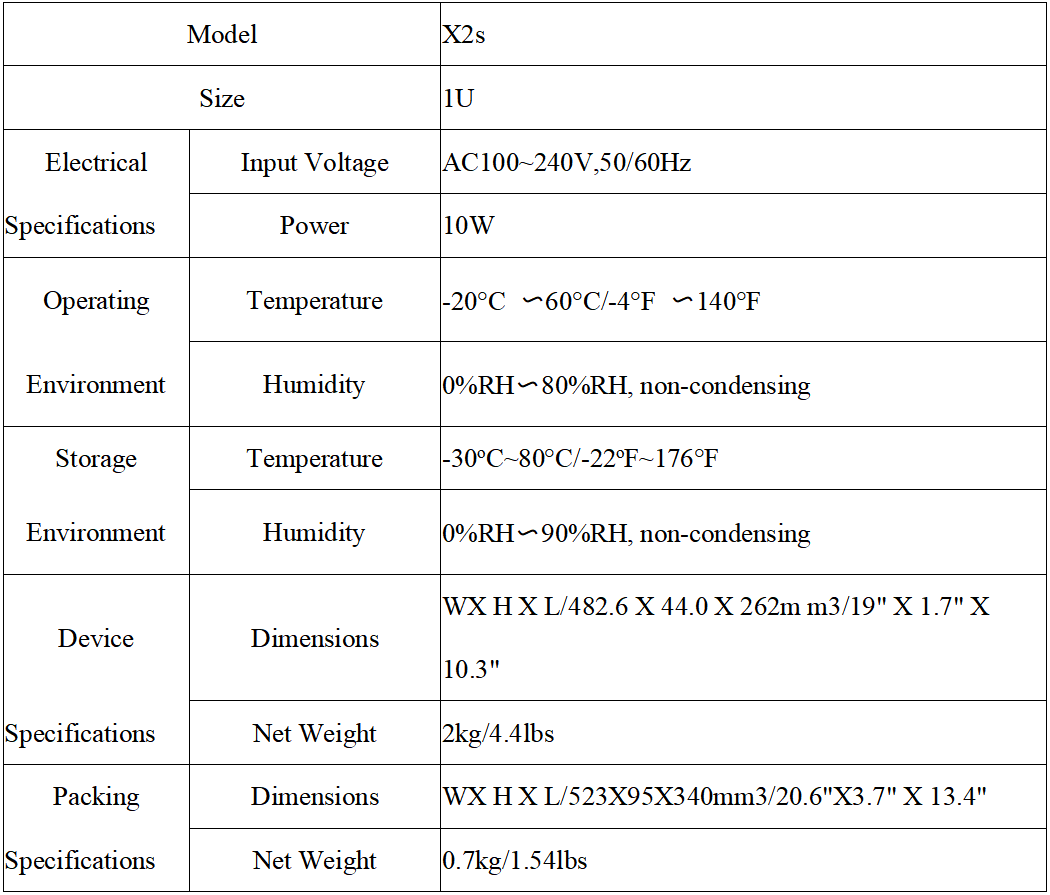

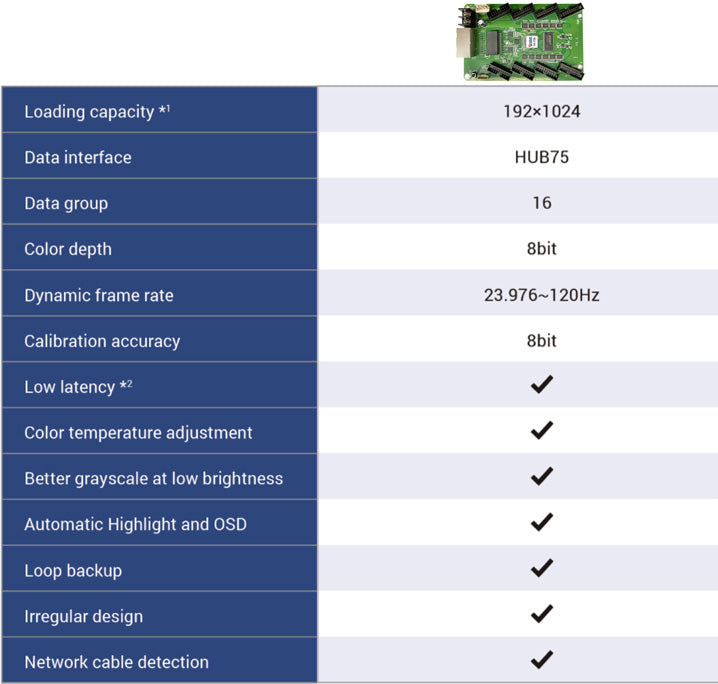

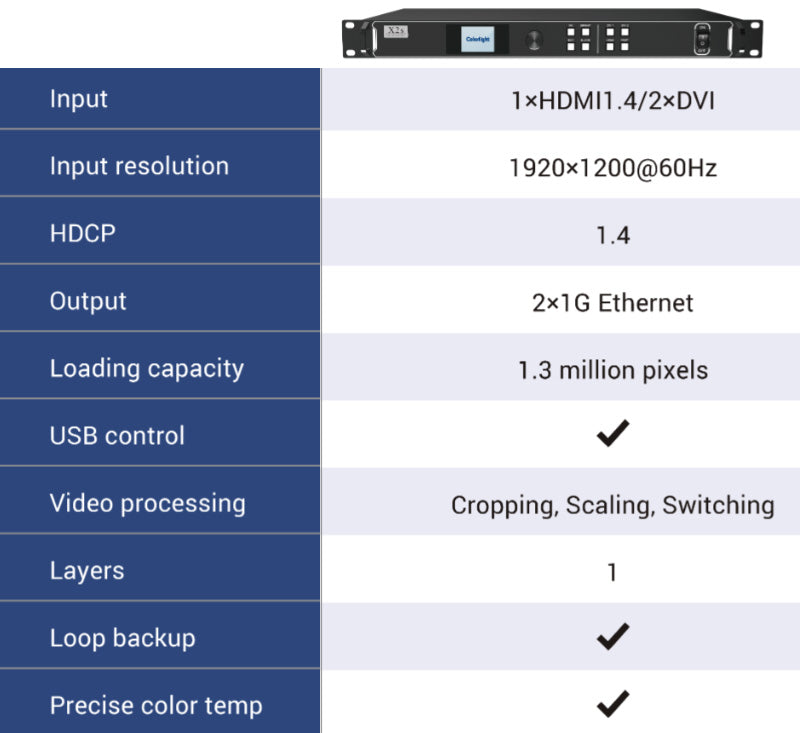

Specifications:

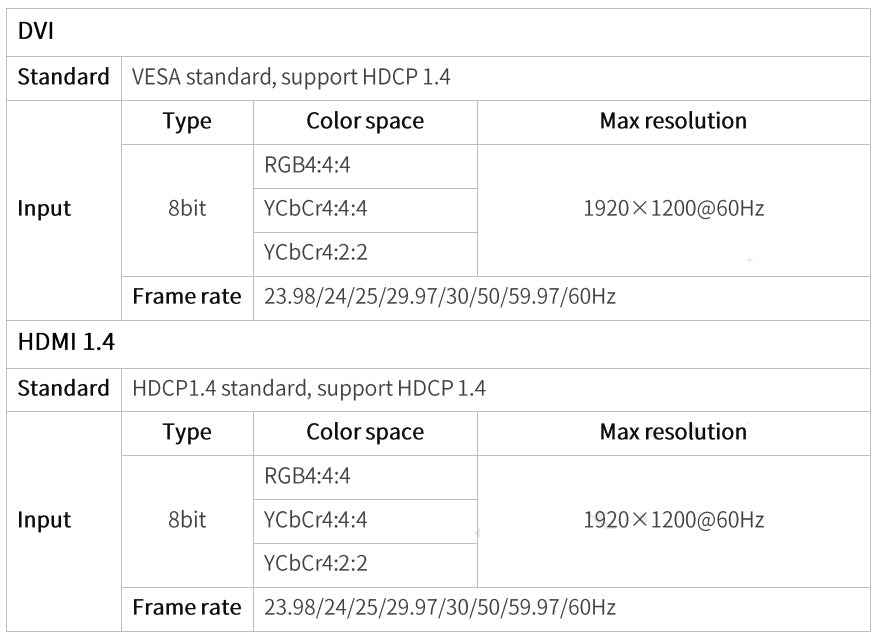

Parameters:

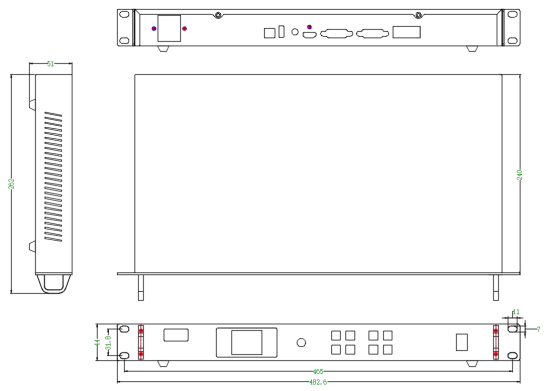

Dimension:
Unit: mm

LLD-X2s including in the box:
Video Processor
USB Cable
HDMI Cable
DVI Cable
AC Plug
Manual
