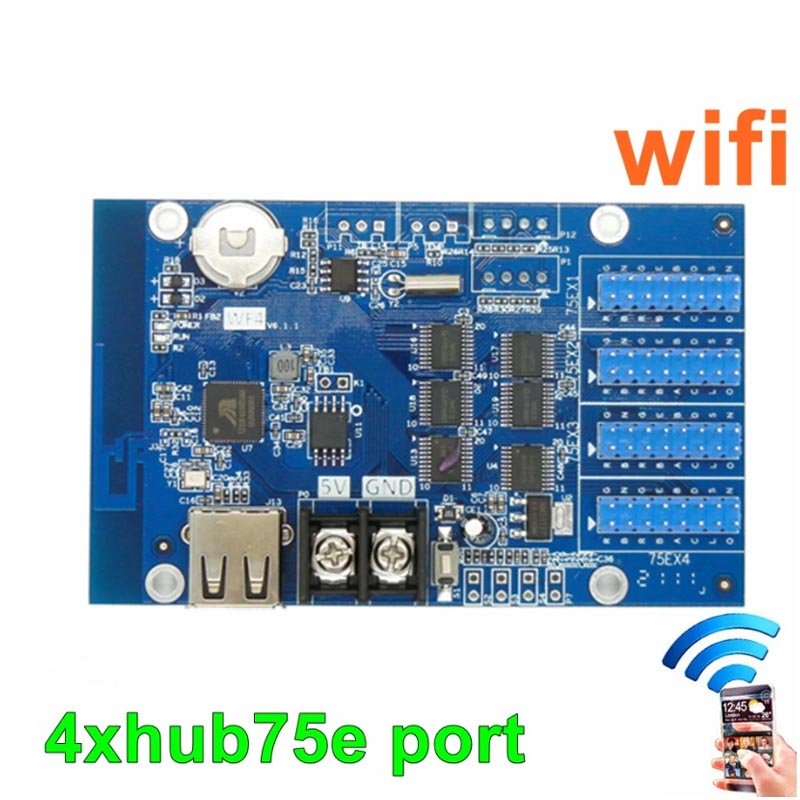

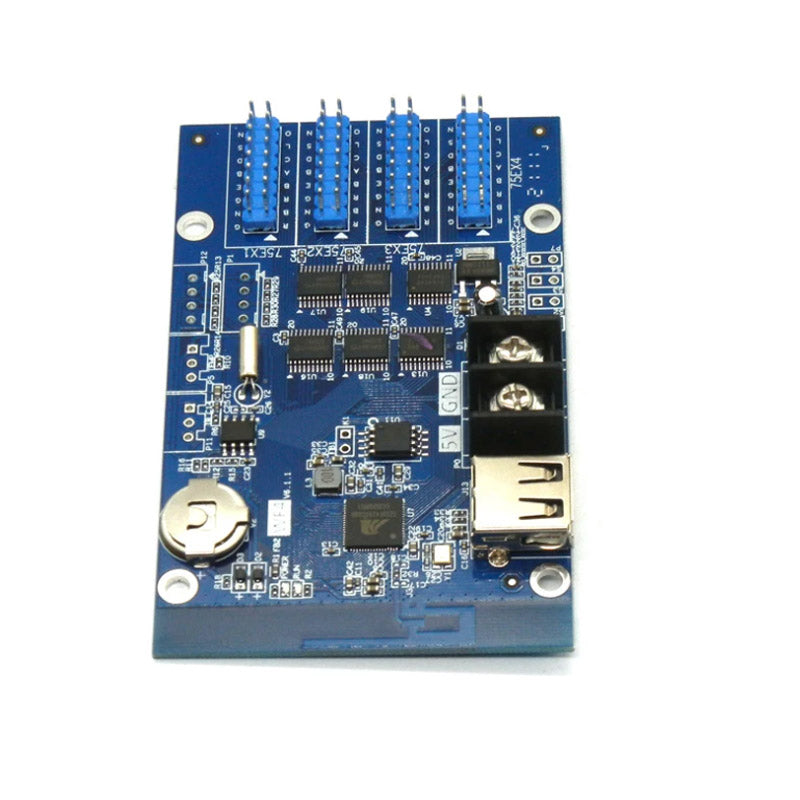

Led Control Card 1280 x 256 Pixels Full Color Controller 4 x HUB75E

Integrated WiFI/USB LED screen display module controller specification:
It is mainly used for showing 7 colors messages, appreciates it has strong memory function, and your messages can't lose even power off the digital signs.
Wi-Fi connection passwords: 88888888


You can search and download the APP ”LedArt” from Google Play or APP Store, or scan the QR code.

Control pixels: Max 768x128,1280x64 pixels (widest 1280 pixels, highest 256 pixels)

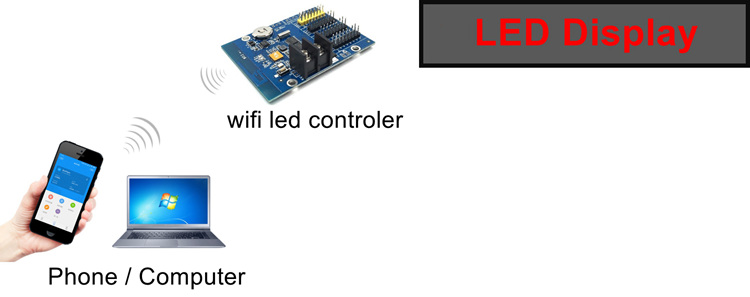

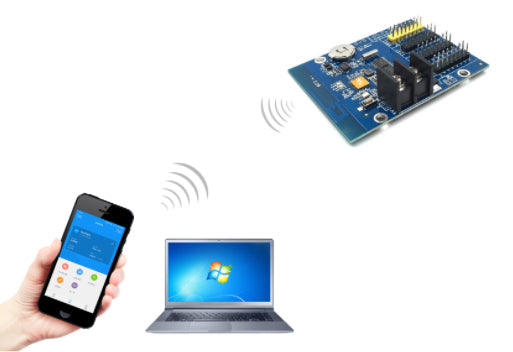

Can support PC / cell Phone APP to send messages to the led display
It supports WiFi and USB flash disk updates messages.
Communication: WIFI, option by USB
Interface: 4 x HUB75E port (it can support P2, P2.5, P3, P4, P5, P6, P7.62, P8, P10 etc. full color modules)
Scanning way: Support static to 1/32S
Extension function: temperature, humidity, brightness, remote control, etc.,
Full-color LED modules can display red, green, blue, yellow, purple, green, white
Gray level: 8  level, support full-color text, JPG, BMP, GIF
FLASH Capacity: 8M Bytes
Program Quantity: 999 programs, support switching the program by Wi-Fi freely
Regions: Max 20 regions, support regions overlap
Display Showing: Text/Animated word/3D Word/Image & Text(Picture, SWF)/ Excel/ Time/ Timing/Count/Lunar calendar
Dimming: Support brightness setting, time period brightness setting

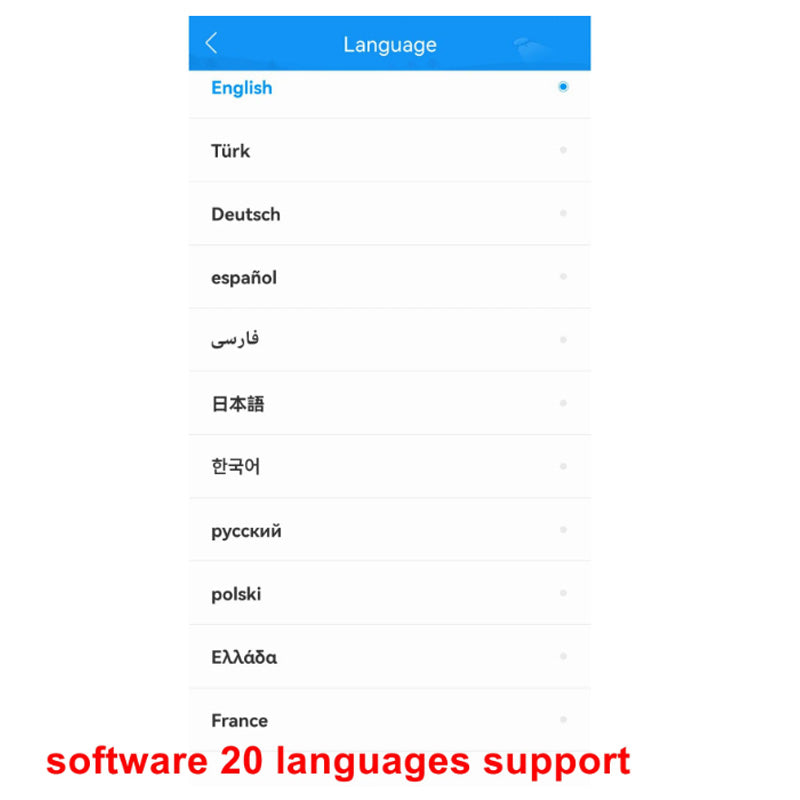

Multi-Languages support
Voltage: 4.2-5.5V
Working Temperature:- 40℃~ 80℃
Consumption＜0.5W
