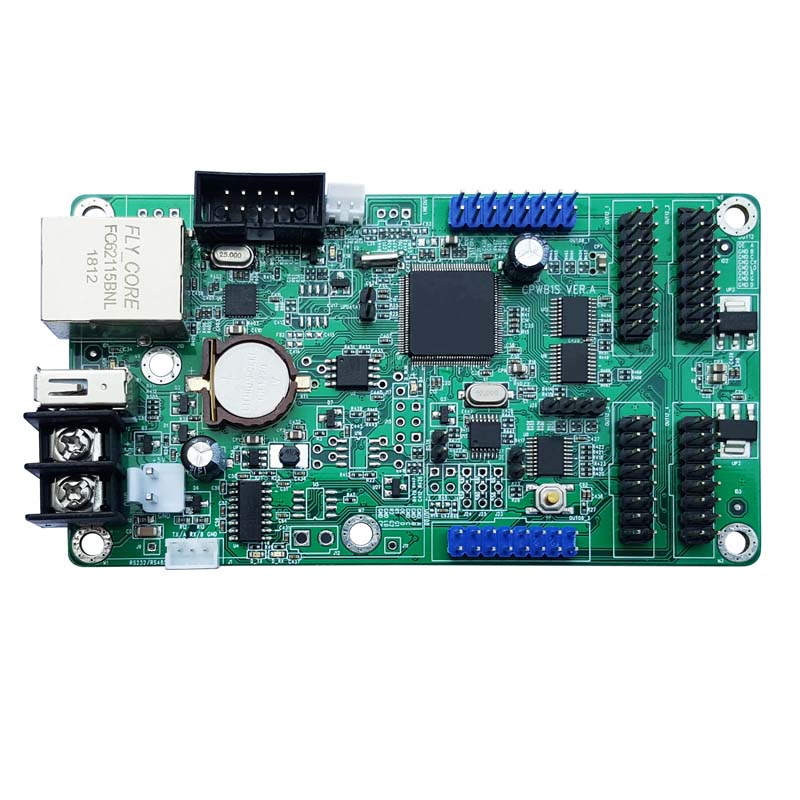

Leadleds Led Sign Control Card 1024 x 64 Pixels TCP IP Serial Port Offer Protocol

$79.00

$79.00 ~~$0.00~~

Comms Mode: TCP/IP or Serial Port

TCP/IP or Serial Port

WiFi / Serial Port

Include Protocol: Yes

Yes

Quantity

Free shipping on orders over $60. See our Shipping Policy for delivery estimates.

Product Description

Product Reviews

Text picture LED signs Control Card Support P3 P4 P5 P6 P7.62 P8 P10mm Led module display board, support external call protocol and secondary development interface.

Display Color Ability: Monochrome, bicolor, tricolor, 7 colors without gray-scale
Display Function: Graphics/text/number/animation
Usage: OUTDOOR/INDOOR
Brand Name: Leadleds
Pixels: 4mm, 5mm, 6mm, 7.62mm, 10mm,16mm
Control Range: 1024*64 832*32 416*64 544*48 Pixels
Module Interface: 4 HUB12 interfaces（2 HUB08 interfaces), 2 HUB75
Operating Temperature: -30-70℃
Software/documents: Send via a network link, no CD

[product functional specification]

Control Area	1024* 64 pixels; 7 colors without gray-scale
Memory capacity	The standard board contains 8 megabytes (64Mbit) of which the program space is 3.2 megabytes.
Support program content	Support multiple program types such as Flash (SWF), Animation (GIF), Images, Text, Clock, etc More than 60 types of action special effects, such as drifting snow, mosaic, fan-shaped unfolding, etc; Set wrap borders independently for each window Universal language program, with transparent overlay display of text in multiple windows Multi-program mode, with a maximum storage capacity of thousands of programs on the screen Menu style program hierarchical management, simple and fast editing, and management Support program playback by time slot, accurate to week, hour, and minute






Windowing mode	Each program supports a maximum of 10 playing windows for arbitrary segmentation, and each window supports simultaneous playback of content in different formats
Subsidiary function	The board has its own real-time clock RTC management and setup. Environment data programs such as analog clocks, digital clocks, and transparent displays, support temperature Support brightness sensor (achieve automatic adjustment of 32-level brightness) *Temperature sensors and brightness sensors are not included.
On-board optional font	2MB font and system space Optional loading 16 × 16, 24 × 24, 32 × 32, 40 × 40, 48 × 48, 56 × 56, etc. Font library which can be edited by the customer; supports a font library with up to 8 different fonts built in and displayed at the same time.
Standard software	Download from online
Communication mode	TCP/IP port: network communication WIFI version: integration of all versions of WIFI RS232/RS485 high-speed serial port: baud rate reach 115200 maximum




Infrared remote control and Keyboard selection[Non-included]	Support infrared remote control and keyboard broadcast program, function control
External plug-in communication accessories support	Support a variety of external wireless communication modes: ZigBee module, RF wireless module, etc.
Else	Provide rich secondary development interface and interface manual, provide secondary development demo program and source code
Interface	With 4 HUB12 interfaces（2 HUB08 interfaces), 2 HUB75 interfaces
